Magnaflux® Portable Yokes and Coils, Power Packs

Y-2 AC Electromagnetic Yoke, Magnaflux

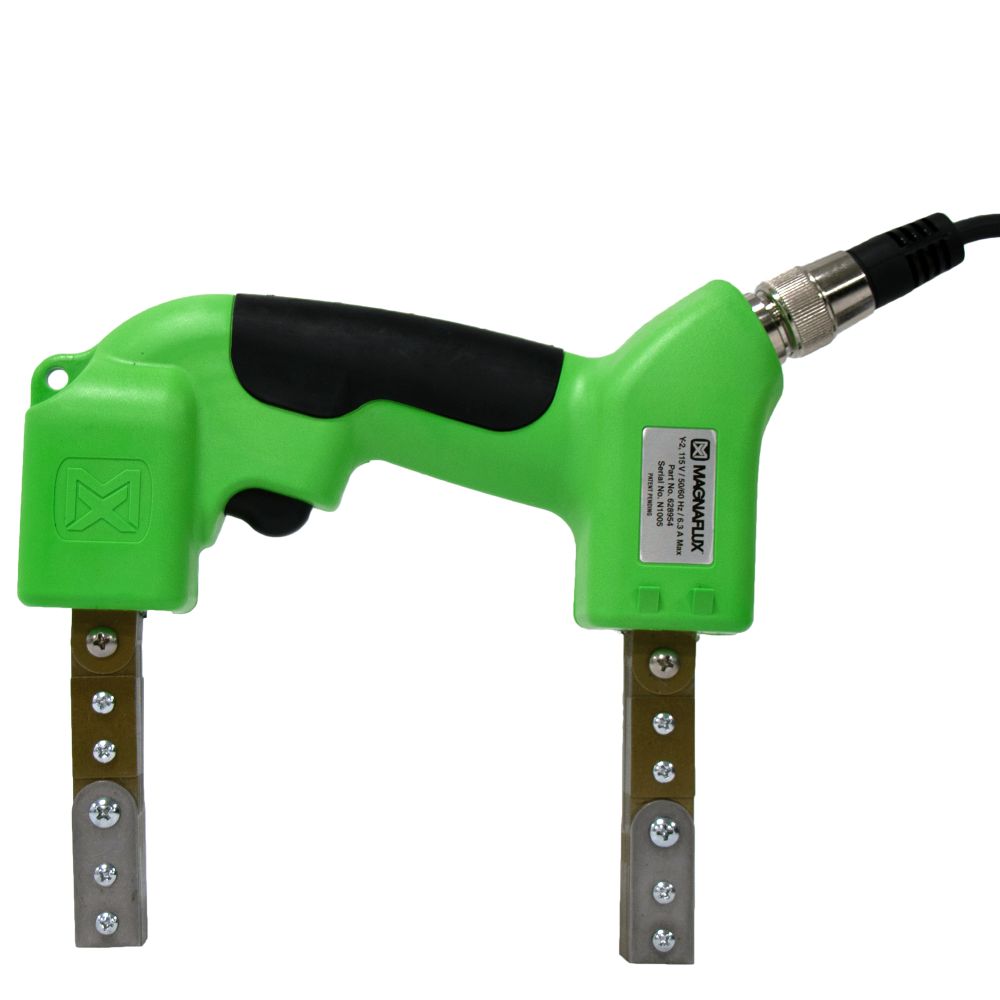

Y-2 AC Electromagnetic Yoke


The Y-2 is an AC electromagnetic yoke, ergonomically designed to improve productivity and reduce operator arm and wrist fatigue. The yoke generates a strong AC magnetic field for the detection of surface indications during magnetic particle testing.
Lightweight with an ergonomic grip and trigger, the Y-2 is designed for the rugged demands of field inspection. Featuring a field swappable cord and isolated trigger switch; the Y-2 is easily serviceable because a severed cord should not stop a job from getting done.
A super bright LED attachment is available as an optional item to help illuminate the inspection area while simultaneously magnetizing the part. All-in-one Kits are also available, including #1 Gray and #8A Red magnetic powders, a yellow paint marker, and cleaning cloth, for a full inspection kit in one convenient carrying case.

Features
  • Ergonomic, light-weight design
  • IP54 sealed housing resists dust and water
  • Field-swappable power cord
  • Isolated, replaceable trigger switch
  • Steel shields for leg protection
  • Exceeds ASTM lifting specifications
  • onvenient carrying case supplied with all yoke shipments
  • Optional LED yoke light lasts longer and is more intense compared to traditional bulbs



    • Magnaflux Y-2 AC Yoke Kit

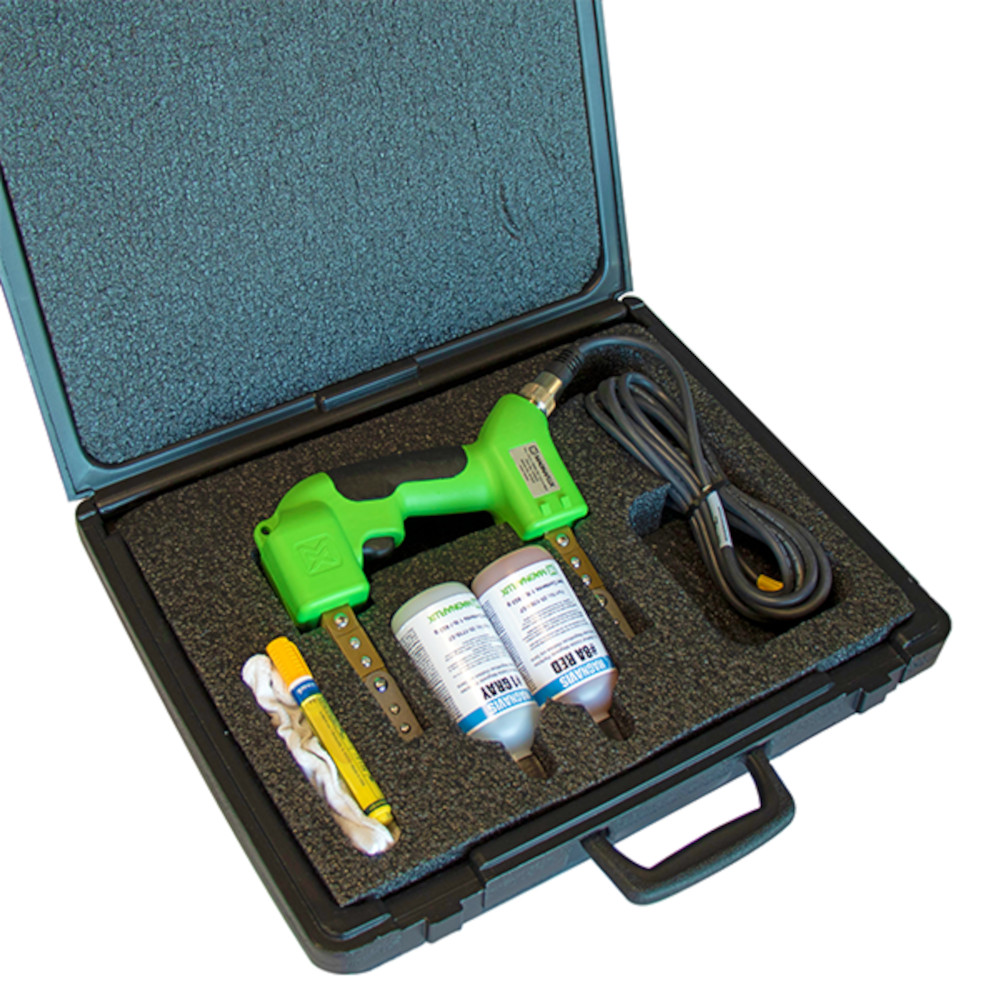

    Y-2 AC Magnetic Yoke Kit

    The Magnaflux® Y 2 AC Magnetic Yoke Kit contains all key elements necessary to perform visible magnetic particle inspections

    Kit includes Y-2 Yoke,
  • One lb. of #1 Gray
  • one lb. of #8A Red Powder
  • Paint Marker
  • Hand Cleaner
  • Portable Carrying Case

    • Y7 AC/DC Yoke, Mag Particle Insp

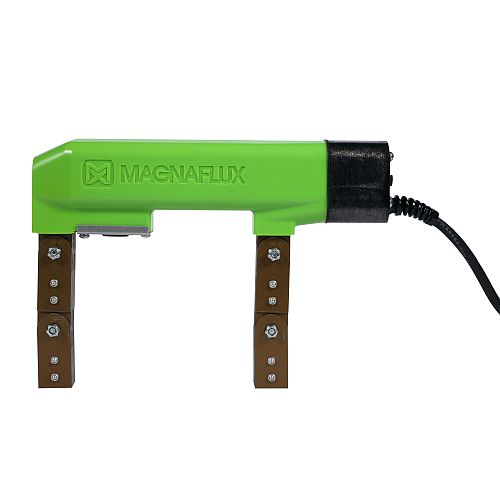

    Y-7 AC / DC Magnetic Yoke


    The Y-7 is a durable, high-strength AC/DC magnetic yoke designed to detect surface and sub-surface indications in the most rugged applications.
    Featuring sealed chemical-resistant construction, articulating legs to contour to any part shape and robust strain-relieved twelve-foot cord for field use, the Y-7 is ideal for inspection of welds and other remote testing.
    Solid-state controls allow the operator to use AC magnetic fields for surface indications or DC magnetic fields for sub-surface indications to meet all inspection needs.


    Y7 AC/DC Yoke, Mag Particle Insp

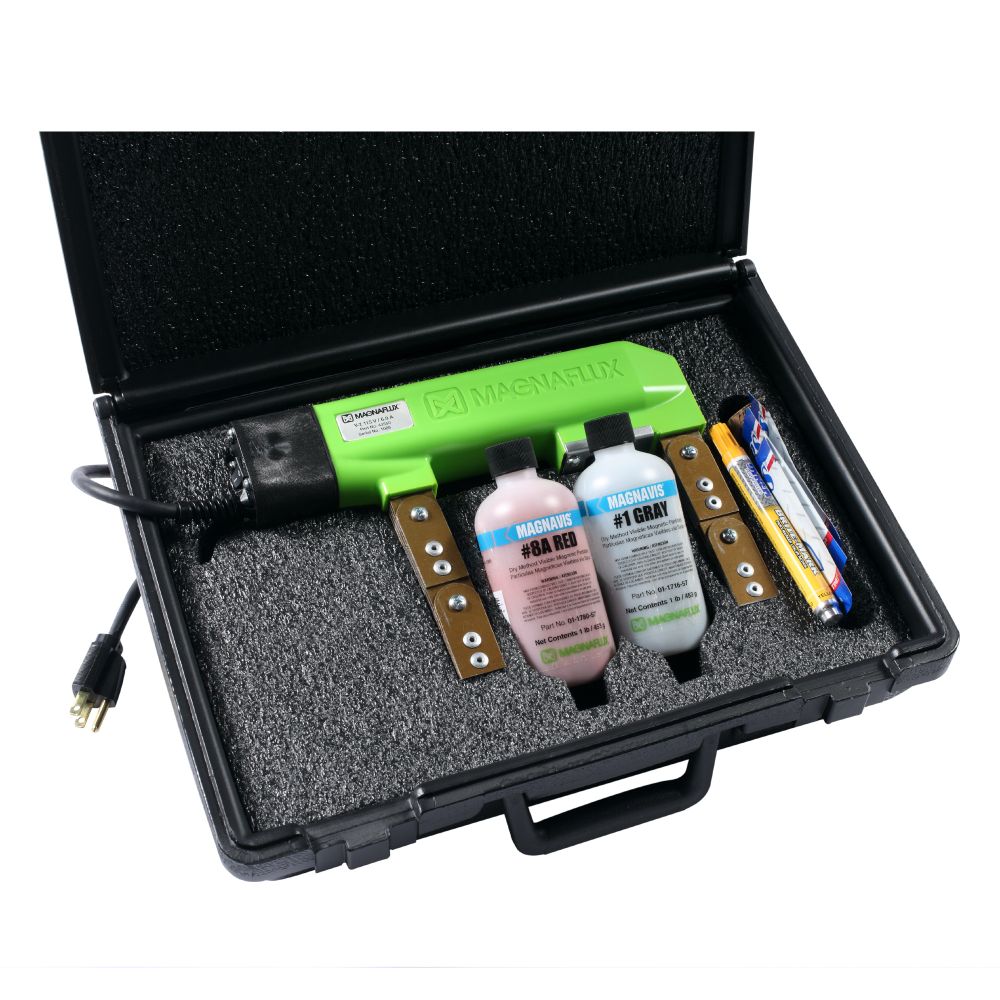

    Y-7 AC / DC Magnetic Yoke Kit

    The Y-7 AC/DC Magnetic Particle Yoke Kit contains all key elements necessary to perform visible magnetic particle inspections
    Kit includes Y-7 AC/DC Yoke

  • One lb. of #1 Gray
  • one lb. of #8A Red Powder
  • Paint Marker
  • Hand Cleaner towels
  • Portable Carrying Case
  • Instructions





    • Y-8 Battery Operated Magnetic Yoke Kit

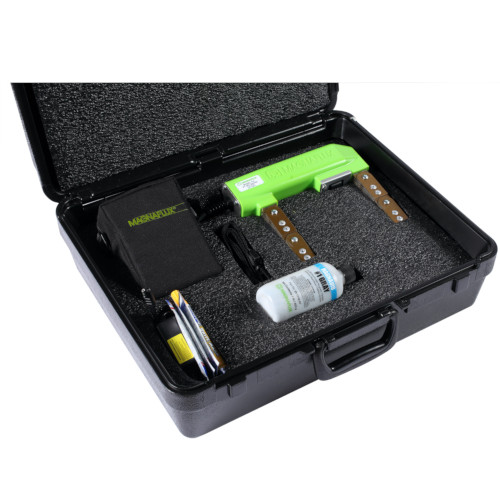

    Y-8 Battery Operated Magnetic Yoke Kit

    The Y- 8 Battery Operated Magnetic Yoke brings battery portability to magnetic particle yoke testing.
    Core Benefits:
  • 100% portable for field inspections
  • Battery pack with convenient shoulder strap
  • Articulating, double-jointed legs contour to part's shape for superior contact
  • Solid state controls located in the yoke's housing for maximum safety and reliability


    • L-10 AC Coil by Maganflux®

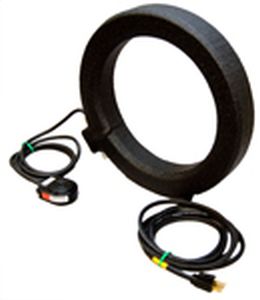

    L-10 Coil

    Portable AC coil for use in the detection of surface cracks.



    P 70 and P 1500 Power Packs by Magnalfux®

    Portable Power Packs

    Portable Power Packs are convenient and economical inspection units that are used in a wide range of magnetic particle applications that require only moderate power. The Magnaflux Portable Power Packs are ideal for large or heavy parts, in-service mobile equipment, or job-site welds.
